Corner shower enclosure with fixed glass panel and Pivot door

Corner shower enclosure with fixed glass panel and swinging door – high-quality 8 mm safety glass, elegant design, and maximum flexibility

Our modern corner shower enclosure combines minimalist design with top functionality. A fixed glass panel paired with an elegant swinging (pendant) door creates an airy feel and flexible installation options – perfect for modern bathrooms with clean lines.

Available in numerous configurations:

Door sizes: 70, 80, 90, or 100 cm

Fixed side panels: 70, 80, 90, or 100 cm

→ multiple set combinations available

Premium materials & comfort features

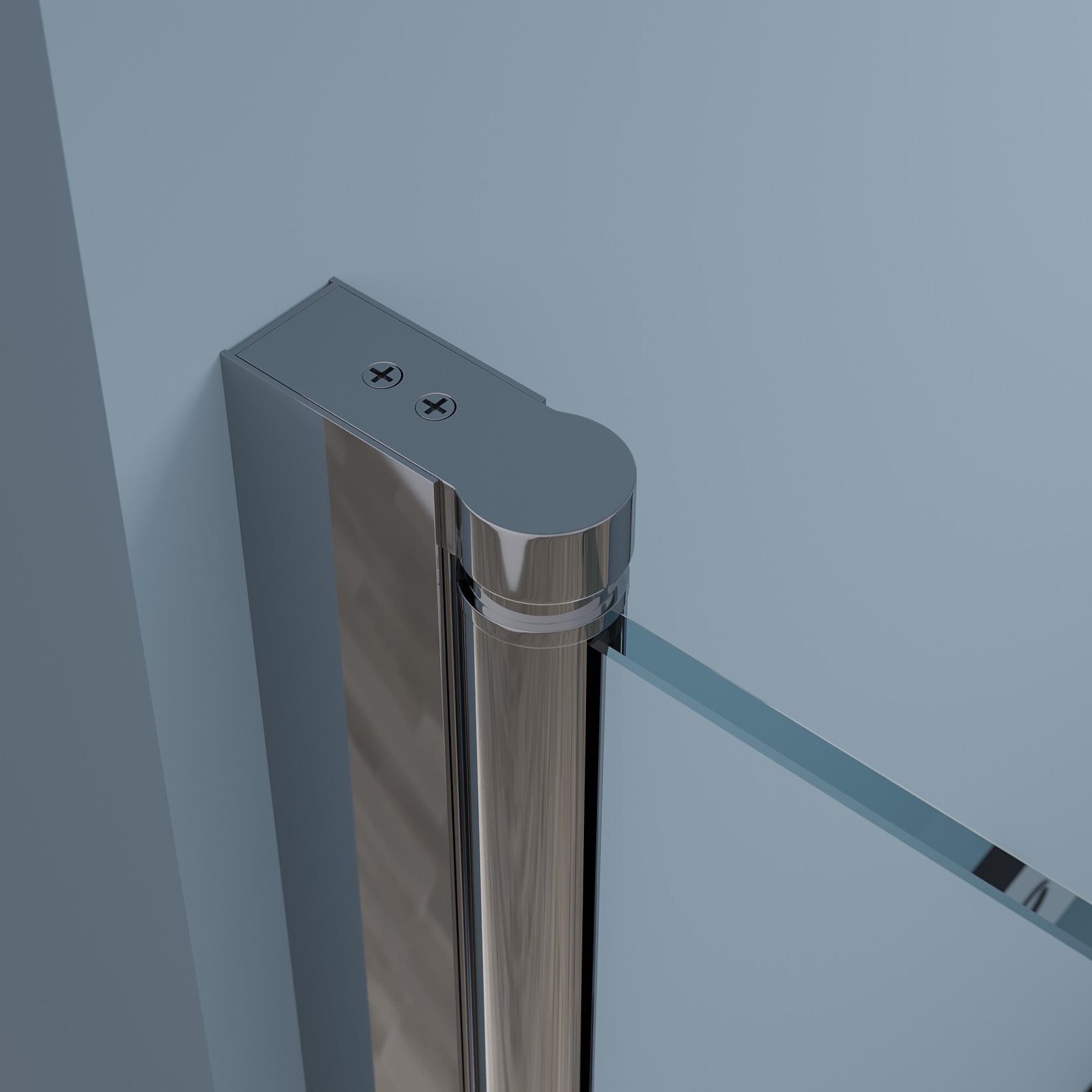

• Minimalist design with concealed screws and elegantly integrated stabilization bar
• Super stable 8 mm tempered safety glass (DIN-EN 12150), nano-sealed for easy-to-clean surfaces
• Elegant aluminum profiles and high-quality fittings – optionally in chrome
• Lift-and-sink mechanism for easy opening and increased protection against door scratching
• Magnetic door closure for a tight and secure seal
• Door can be mounted on the right or left side as preferred
• High-quality door handle made of elegant stainless steel
• Wide, comfortable entry – suitable for walk-in showers as well

Easy to clean – Flexible installation

• Nano Coating: The shower glass is nano-sealed, making cleaning easier and reducing limescale buildup

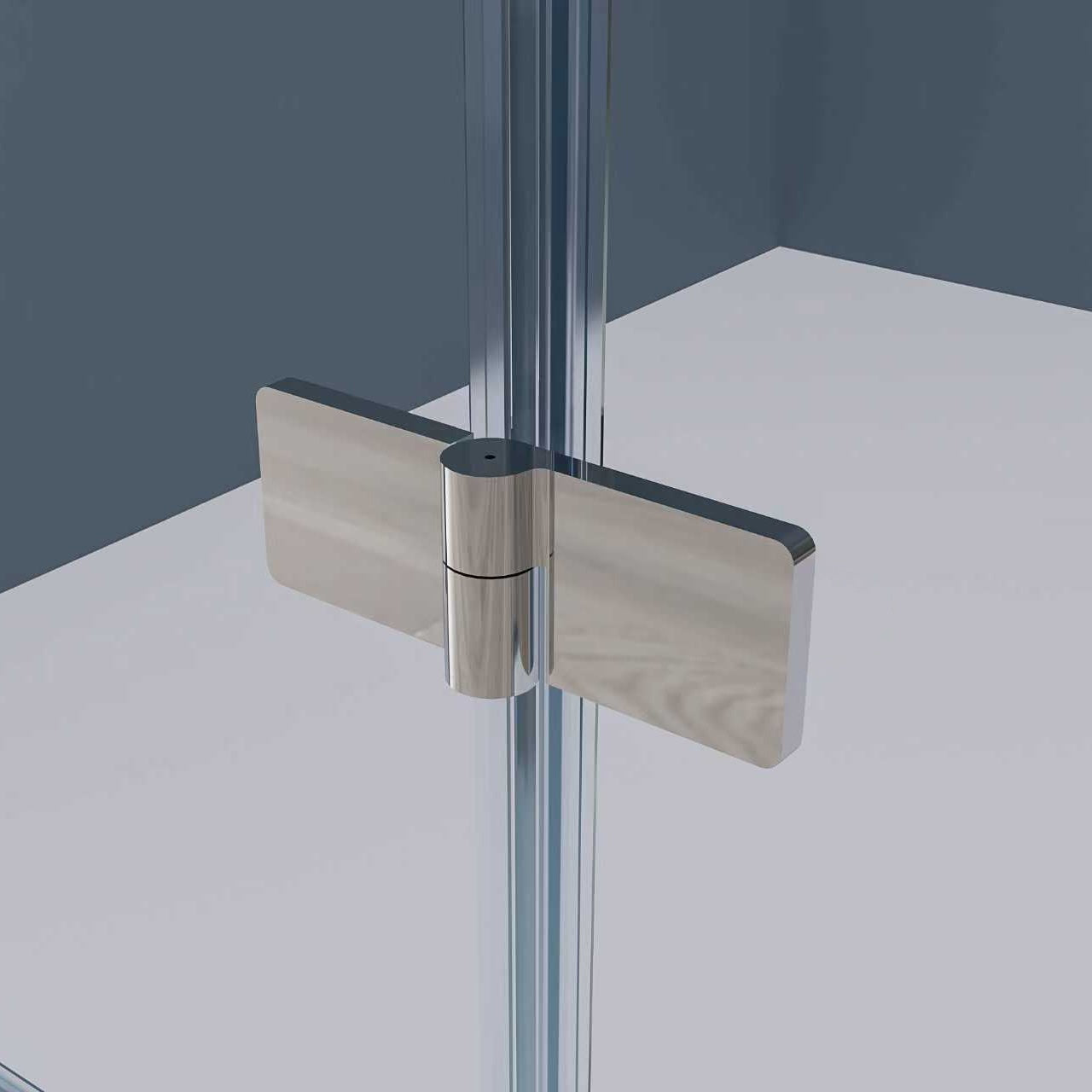

• Flush-mounted hinges minimize deposits

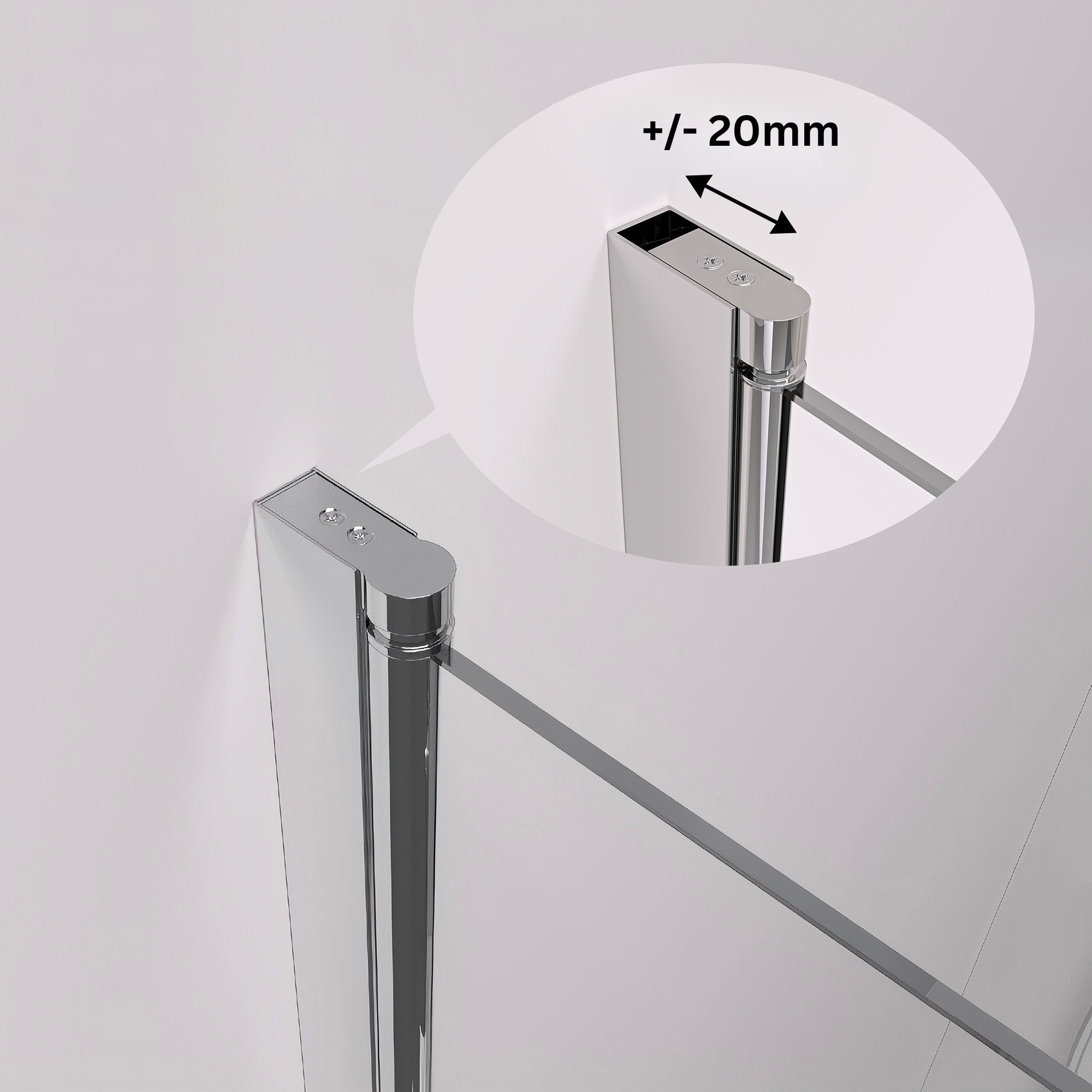

• Wall profile with 15 mm adjustment range – ideal for slightly uneven walls
• Flexible installation solution: suitable for left- or right-hand mounting
• Installation options: flush with the floor or with a shower tray
• TÜV-certified, GS-tested, CE-compliant

Technical details

• Door type: Swing / pendulum door, opens outward
• Glass: clear glass with nano-sealant
• Glass thickness: 8 mm tempered safety glass
• Profile material: aluminum, semi-framed
• Height: 195 cm
• Concealed fittings: yes

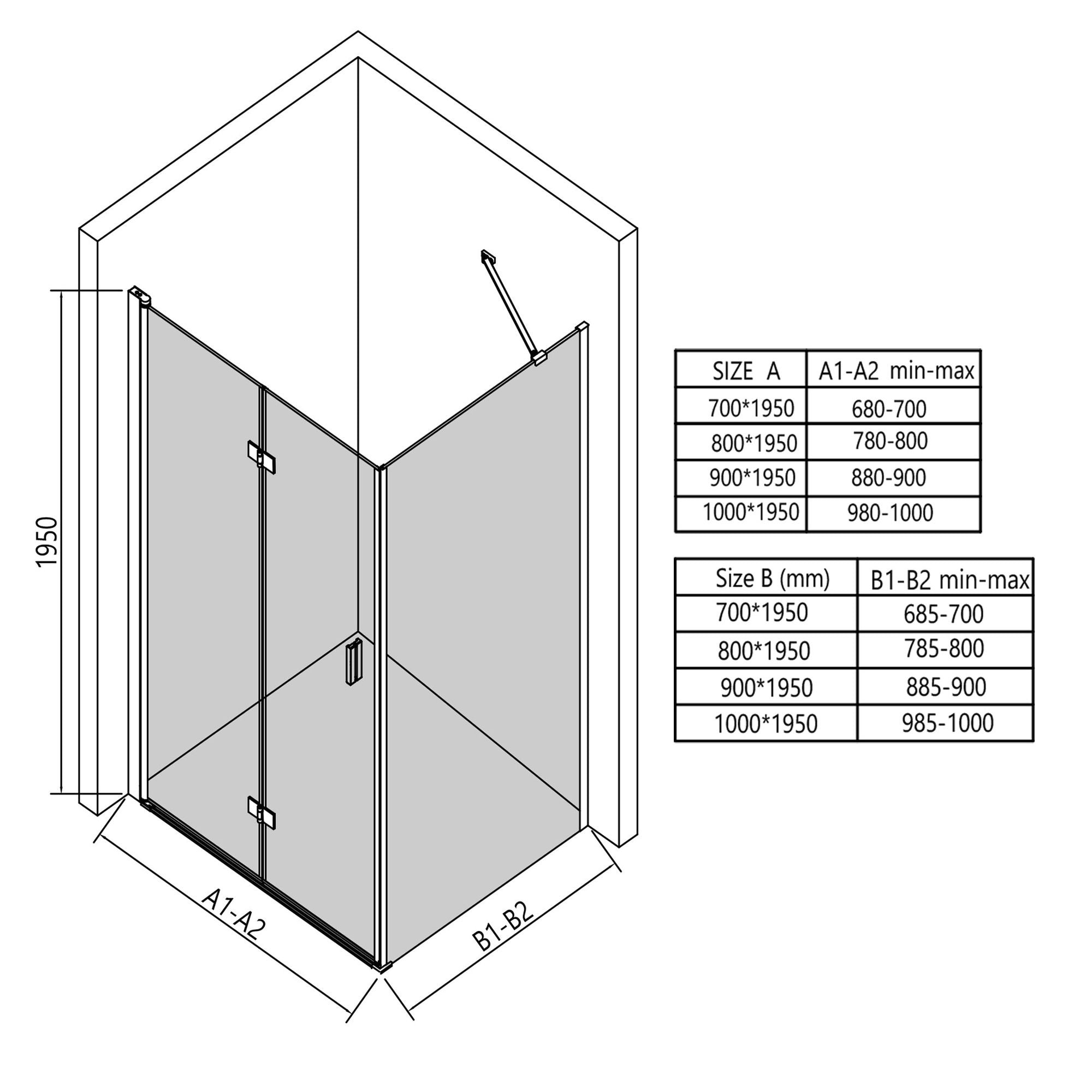

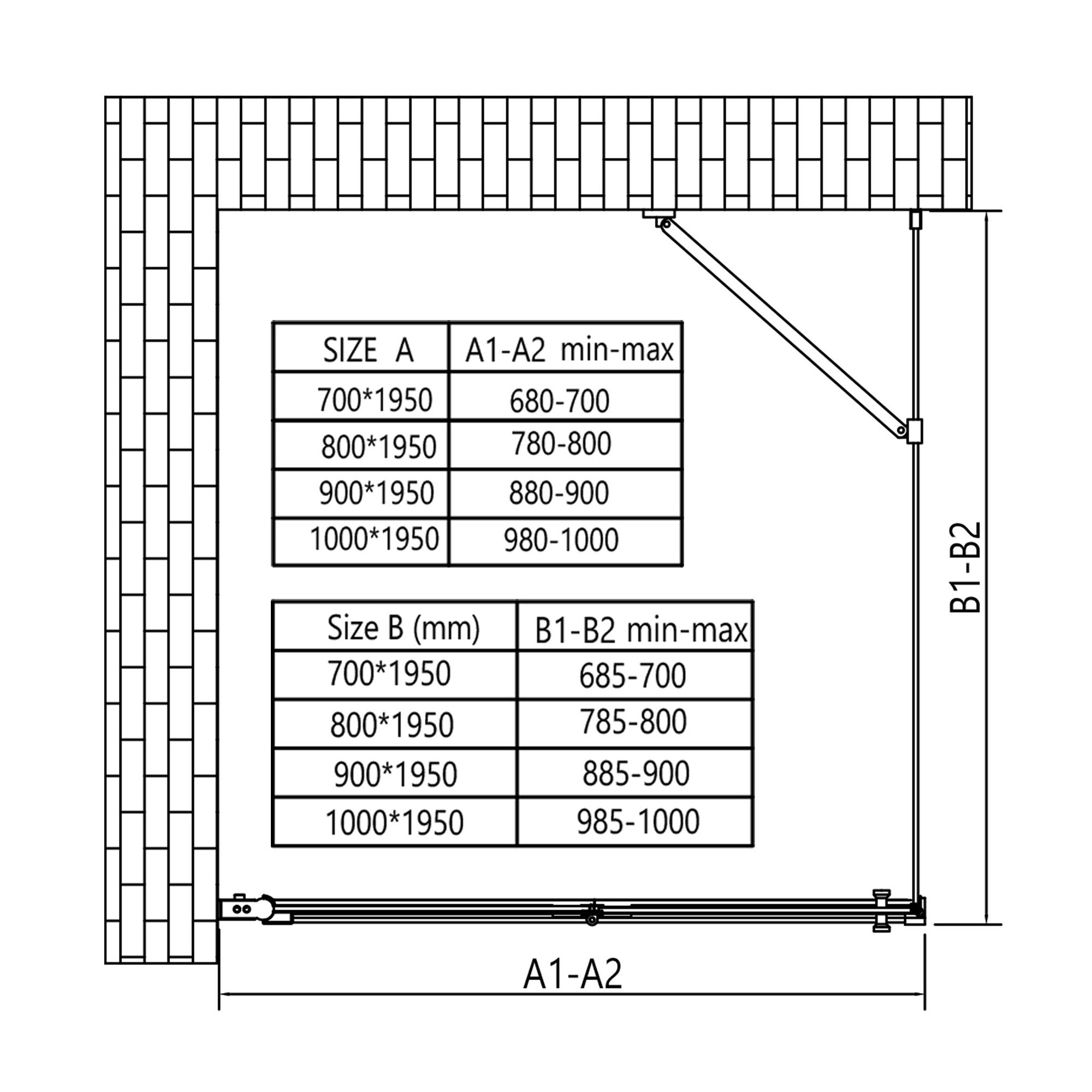

Dimensions & weights

Door elements:

• 70 cm: approx. 68 – 70 cm
• 80 cm: approx. 78 – 80 cm
• 90 cm: approx. 88 – 90 cm
• 100 cm: approx. 98 – 100 cm

Side elements:

• 70 cm: approx. 68 – 70 cm
• 80 cm: approx. 78 – 80 cm
• 90 cm: approx. 88 – 90 cm
• 100 cm: approx. 98 – 100 cm

Gross weight (approx.):

• Door element: 70 cm (26 kg), 80 cm (29 kg), 90 cm (34 kg), 100 cm (39 kg)
• Side panel: 70 cm (30 kg), 80 cm (33 kg), 90 cm (37 kg), 100 cm (40 kg)
• Total depending on configuration

Scope of delivery

• Swing door with fittings
• Fixed glass panel
• Stabilization bar
• Assembly materials and installation instructions
• Without shower tray

Experience thoughtful design, top-quality craftsmanship, and flexible combination options – ideal for sophisticated bathroom designs.
